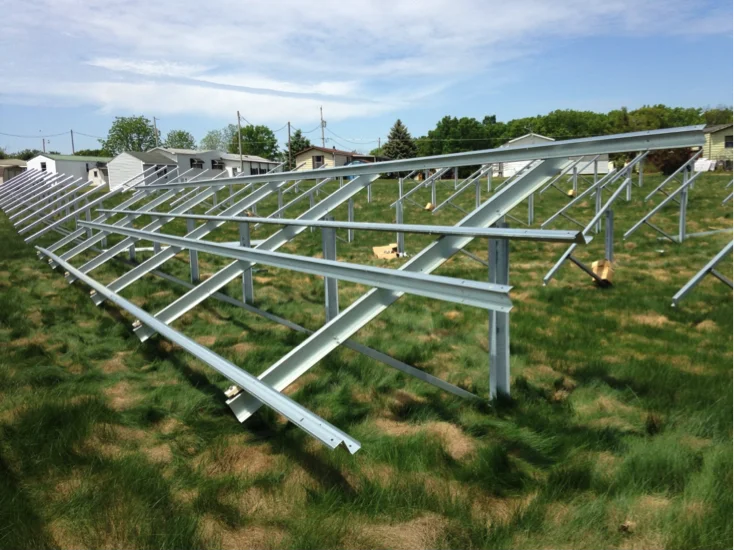

Ground Mounting Structure Details
Our industrial-grade ground mounting systems provide the most flexible and efficient solar installation solution for open land areas. Designed for optimal performance and durability, these structures support solar arrays from 10kW to 10MW+ with customizable configurations for any terrain.
Ground Mount System Advantages:
-
25% MoreEnergy production than rooftop systems
-
360°Access for easy maintenance
-
150 mphWind load resistance rating
-
100%Adjustable tilt for seasonal optimization
Structure Components:
Galvanized Steel Framework
- Hot-dip galvanized for corrosion resistance
- Pre-engineered for quick assembly
- Modular design for easy expansion
- 25-year structural warranty
Foundation Systems
- Ground screw (no concrete required)
- Ballasted (for soil preservation)
- Concrete pier (permanent installations)
- Adjustable for uneven terrain
Technical Specifications:
- Material: G-90 Galvanized Steel
- Height Options: 1m to 3m
- Tilt Angle: 15° to 45° adjustable
- Row Spacing: 3-5 meters
- Load Capacity: 200kg per module
- Corrosion Resistance: 3000+ hours salt spray
Installation Types:
Fixed-Tilt
- Most cost-effective solution
- Optimal angle for location
- Low maintenance
Seasonal-Adjustable
- 3-4 angle changes per year
- 8-12% more energy production
- Manual adjustment mechanism
Tracking Systems
- Single or dual-axis tracking
- 25-35% more energy
- Automatic sun following
System Configurations:
Residential (10-50kW)
- 20-100 panels
- 100-500 sqm area
- Perfect for farms/villas
Commercial (50-500kW)
- 100-1000 panels
- 500-5000 sqm area
- Ideal for businesses
Utility Scale (500kW+)
- 1000+ panels
- 5000+ sqm area
- For solar farms
Our ground mounting systems are engineered for maximum durability and performance, with all components tested to withstand extreme weather conditions. Whether you need a small residential array or a multi-megawatt solar farm, we have the perfect ground mount solution for your project.
